Order number: 117.7610

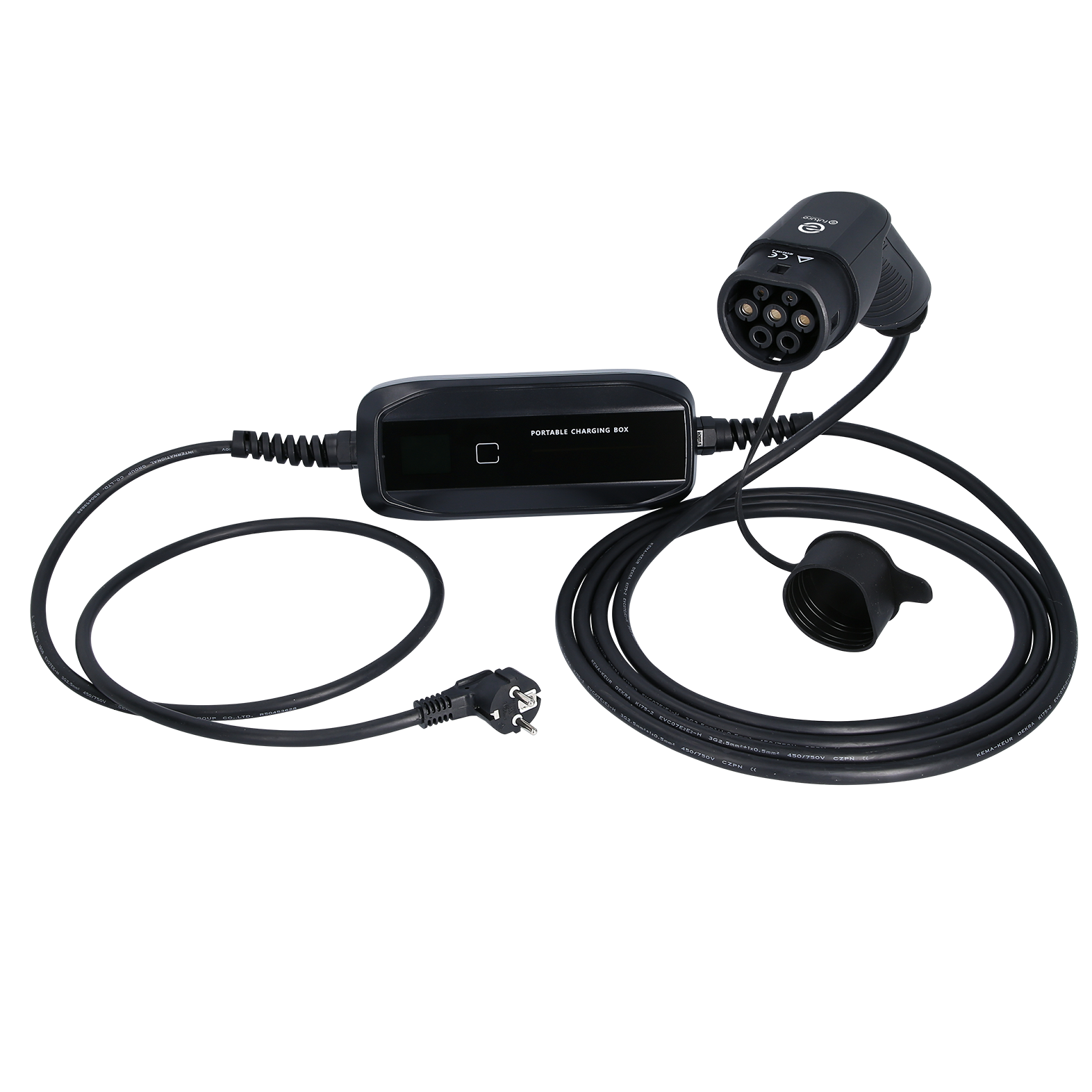

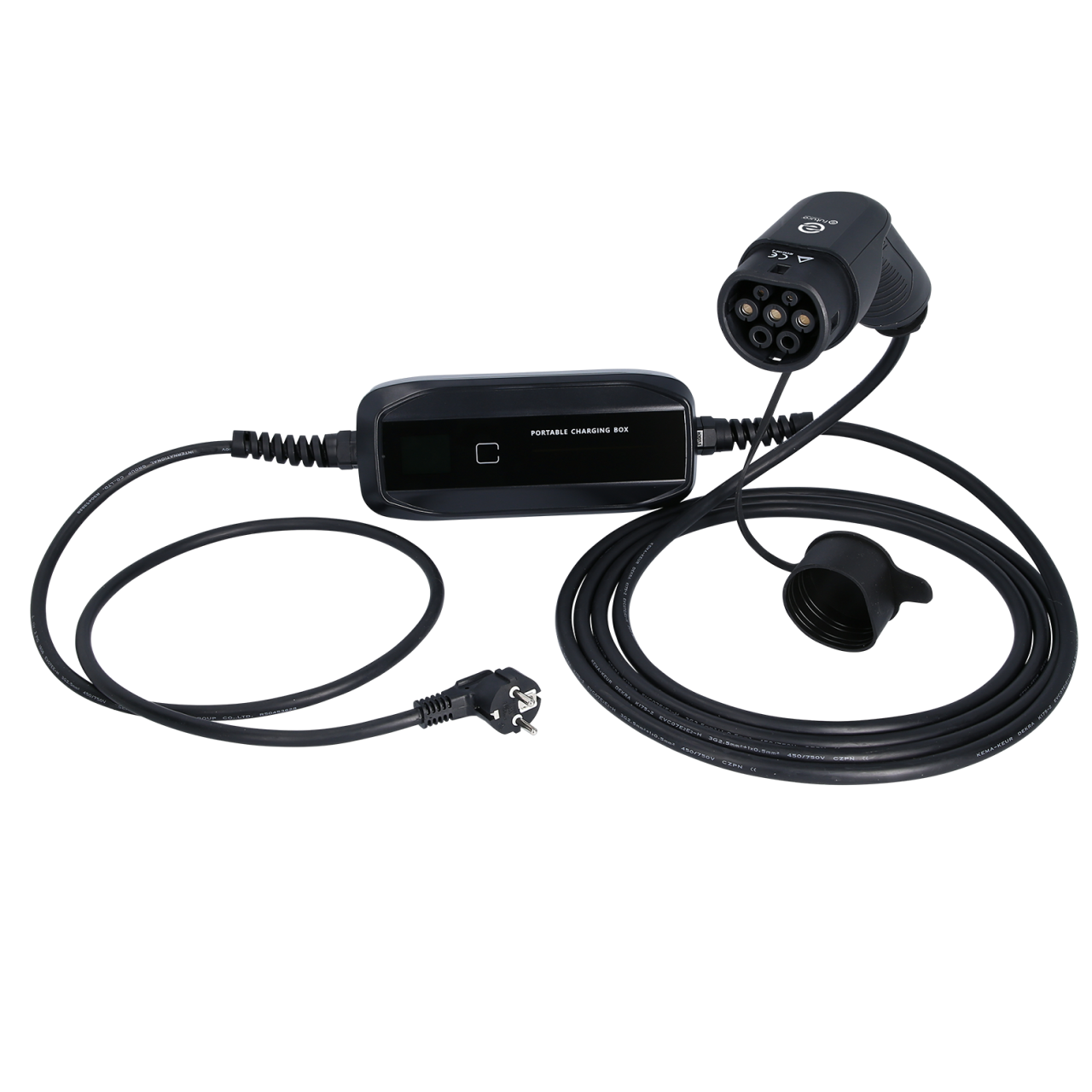

efuturo® universal max mobile charging station with Type 2 charging cable

1-phase, up to 3.7 kW, 10 or 16 A, 230 V, Mode 2, LCD display, shock-proof-plug
  • Mobile charging station to EN 62752: 2016
  • For electric and hybrid vehicles
  • Type 2 (IEC 62196-2)
  • Shock-proof plug
  • Up to 3.7 kW charging capacity
  • Up to 16 A (single-phase)
  • 230 V / 50 Hz
  • Mode 2
  • Ampere adjustable: 10 or 16 Ampere
  • Residual current circuit breaker RCD Type A
  • With overheating protection
  • 1.30 metres cable length in front of housing
  • 4.00 metres cable length behind the housing
  • TÜV approved, CE and RoHS certified
€893.75 *
excl. VAT plus shipping costs

Delivery time approx. 5 working days

Description

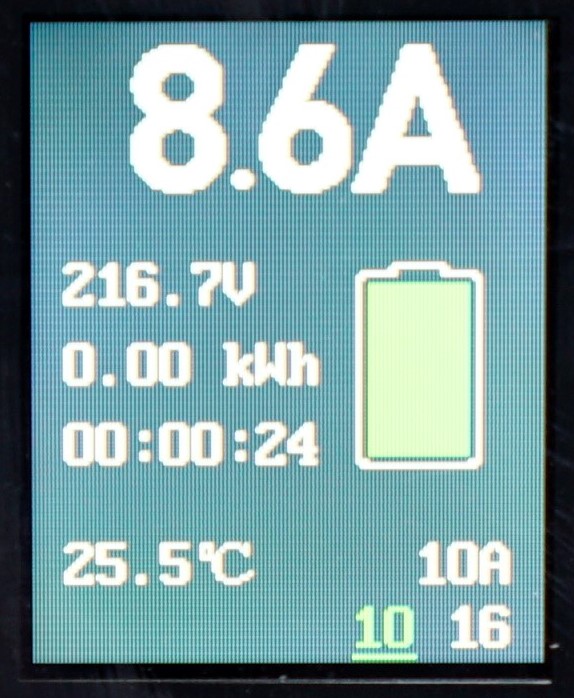

The efuturo mobile charging station's compact design makes it a space-saving charging station for electric and hybrid vehicles. The integrated LED display means that the mobile charging station is easy to operate and delivers information about the charging status or possible error messages at a glance. The amperage can be adjusted to 10 or 16 A. The high-quality plastic housing is ideal for safe operation of the mobile charging station both indoors and out.

The ergonomically shaped type 2 charging plug, along with the high-quality and durable cable with a total action radius of 5.5 metres, connects the mobile charging station quickly and easily to your electric or hybrid vehicle.
Following brief communication between the mobile charging station and the vehicle, charging of the vehicle battery begins.

This means that the charging time can be reduced significantly. While the charging cycle for a Renault Zoe at a household plug socket (2.3 kW) takes around 25 hours, with a 3.7 kW mobile charging station, it takes around 16 hours.

Common specification
Manufacturer number
117.7610
EAN
4042146865217
Protective device
RCD type A
Plug at vehicle end
Type 2
Electric meter
no
Access protection
no
Charging mode
Mode 2
Charging delay time
no
Preset of charging time
no
Norm / guideline
EN 62752: 2016
Coupling cycles
up to 10.000
IP protection
IP 66
Dimension housing
56 x 105 x 245 mm
Operating temperature
-40°C to +75°C
Plug mains end
shock-proof-plug
Colour
black / black
Certification
TÜV, CE, RoHS
Electrical specification
Charging capacity
up to 3,7 kW
Display mode
LCD
Cable form
straight
Cable length
5,30 meters overall
Wire cross section mm²
3 G 2,5 + 0,5
Communication
(IEC 61851-1): Mode 2
Voltage
230 V / 50 Hz
DC fault current detection
no
Adjustment Ampere
yes
Current
16 A (single-phase)
Downloads
manual
