Order number: 117.7165

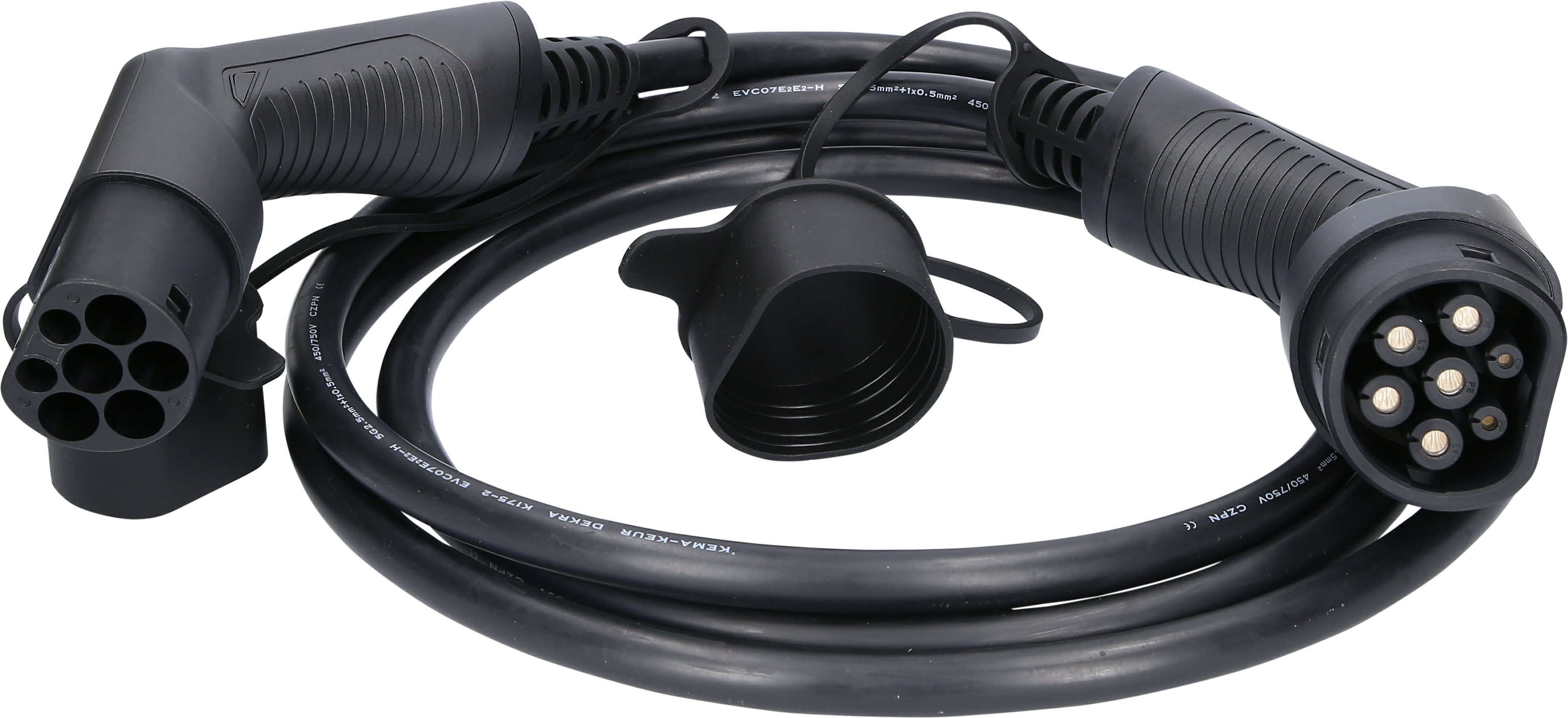

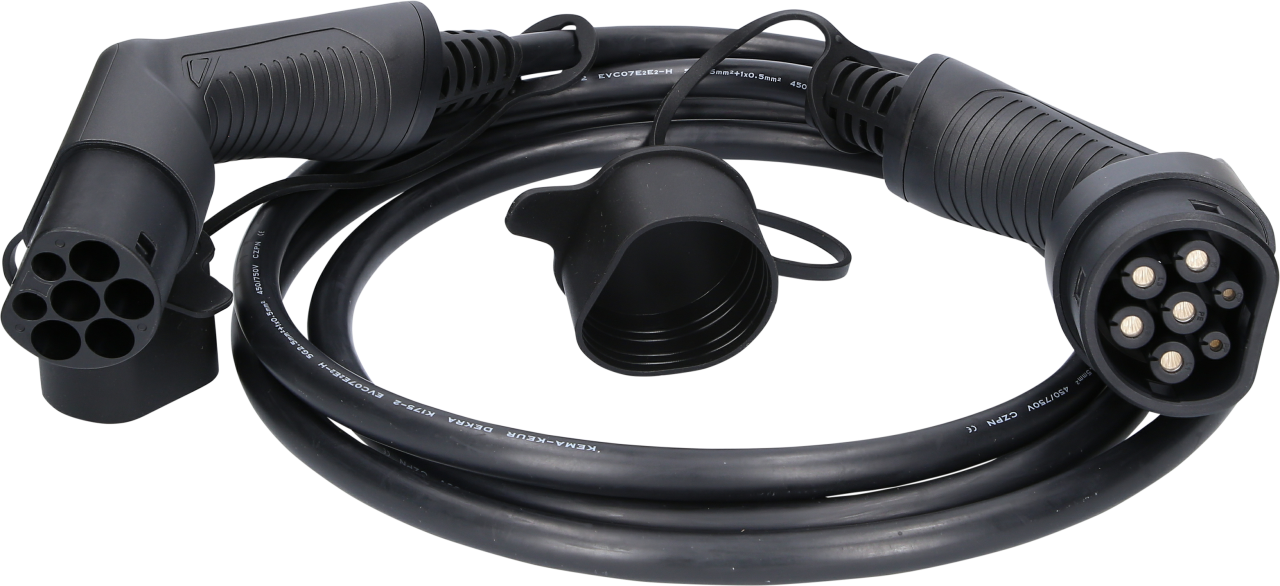

efuturo® link charging cable straight, Type 2 to Type 2 plug

3-phase, up to 11 kW, 16 A, 400 V, Mode 3, 3 metres
  • Connection cable from the charging station to the vehicle
  • For electric and hybrid vehicles
  • Type 2 – Type 2 (IEC 62196-2)
  • Up to 11 kW charging capacity
  • 16 A (three-phase)
  • 400 V
  • Mode 3
  • 3 metres cable length
  • With overheating protection
  • TÜV approved, CE and RoHS certified
  • Including cable bag


€465.65 *
excl. VAT plus shipping costs

Delivery time approx. 5 working days


With this Mode 3 quality cable you can very rapidly, safely and reliably charge your electric or hybrid vehicle. The integrated overheating protection interrupts the electrical supply in the event of very high heat development and in this way prevents damage to the vehicle battery or the charging station.

With a charging capacity of up to 11 kW and a cable length of 3 metres, this cable is ideally suited for charging at home or at a public charging station. Thanks to the ergonomically designed plugs and the high-quality and durable cable, this charging cable is a reliable partner for charging your electric or hybrid vehicle. You can also use this cable for charging at charging stations up to a maximum of 11 kW since these Mode 3 charging units are designed to ensure that your vehicle receives the correct electrical power via the cable. The charging plug can be locked both on the station as well as the vehicle. Just lock your car to do this. The plugs are then firmly attached to your car and the station and you can relax while you leave the car during the charging process.

A practical cable box is included in the scope of delivery of your new charging cable so that your charging cable is securely stored when you are not charging.

Common specification
Manufacturer number
Plug at vehicle end
Type 2
Plug at charging station end
Type 2
black / black
Operating temperature
-25°C to +55°C
IP protection
IP 54 (mit Schutzkappe)
Coupling cycles
up to 10.000
Electrical specification
Charging capacity
up to 11 kW
Cable form
(IEC 62196-2): Mode 3
16 A (three phase)
400 V AC

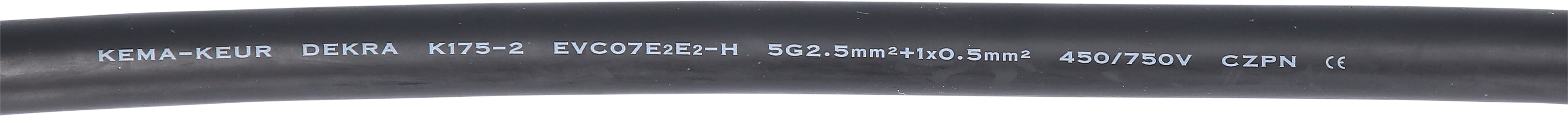

Wire cross section mm²
5 G 2,5 + 0,5
