Order number: 117.7245

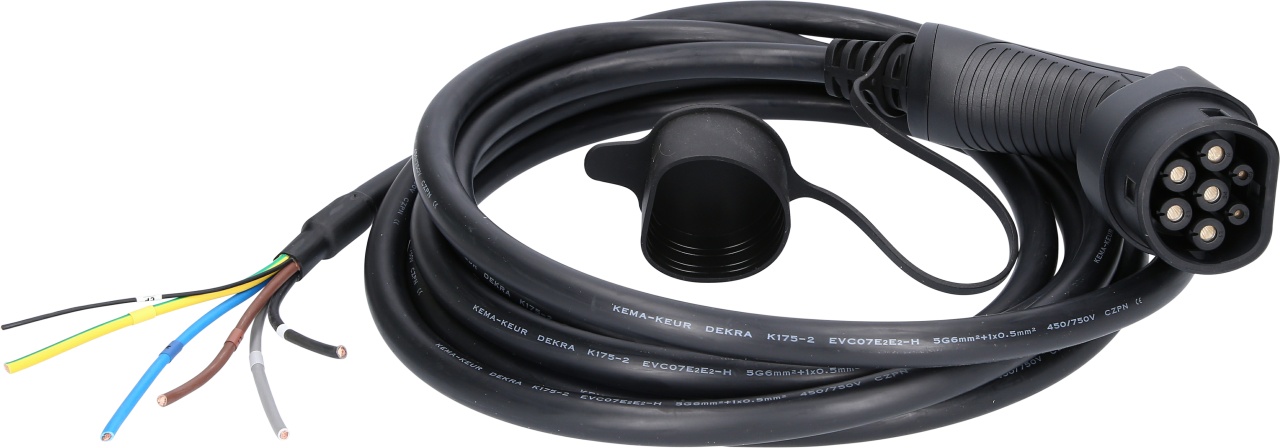

efuturo® link charging cable straight, end open to Type 2 plug for connection to a wallbox

3-phase, up to 22 kW, 32 A, 400 V, Mode 3, 5 metres
  • Connection cable from the charging station to the vehicle
  • For electric and hybrid vehicles
  • End open – Type 2 (IEC 62196-2)
  • Up to 22 kW charging capacity
  • 32 A (three-phase)
  • 400 V
  • Mode 3
  • 5 metres cable length
  • With overheating protection
  • TÜV approved, CE and RoHS certified
€450.38 *
excl. VAT plus shipping costs

Delivery time approx. 5 working days

Description

With this Mode 3 quality cable you can very rapidly, safely and reliably charge your electric or hybrid vehicle. The integrated overheating protection interrupts the electrical supply in the event of very high heat development and in this way prevents damage to the vehicle battery or the charging station.

With a charging capacity of up to 22 kW and a cable length of 5 metres, this cable is ideally suited for charging at home at your own wallbox. Thanks to the ergonomically designed plug and the high-quality and durable cable, this charging cable is a reliable partner for charging your electric or hybrid vehicle. The charging plug can be locked on the vehicle. Just lock your car to do this. The plug is then firmly attached to the car and you can relax while you leave the car during the charging process.

Common specification
Manufacturer number
117.7245
EAN
4042146864807
Plug at vehicle end
Type 2
Plug at charging station end
open end
Mode
3
Operating temperature
-25°C to +55°C
IP protection
IP 54 (mit Schutzkappe)
Coupling cycles
up to 10.000
Certification
TÜV, CE, RoHS
Electrical specification
Charging capacity
up to 22 kW
Cable form
straight
Communication
(IEC 62196-2): Mode 3
Current
32 A (three phase)
Voltage
400 V AC

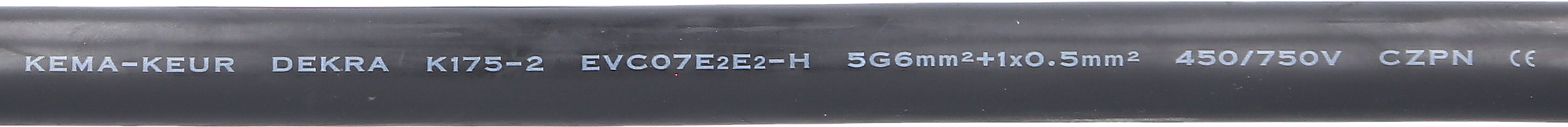

Wire cross section mm²
5 G 6,0 + 0,5
Downloads
manual
