Order number: 117.7933

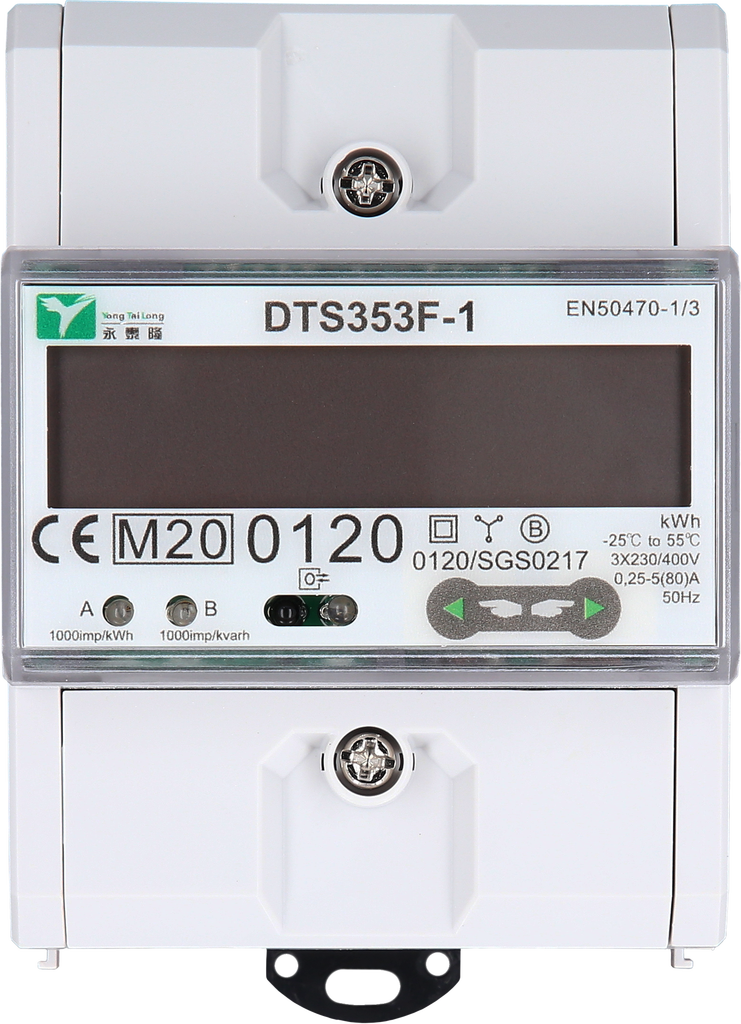

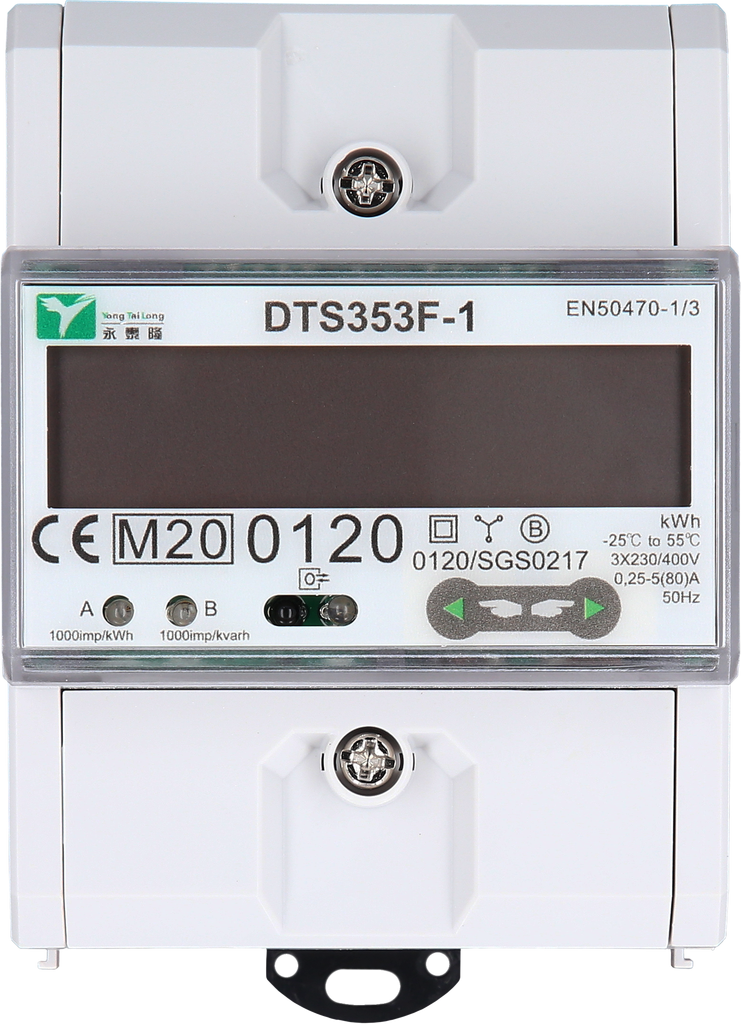

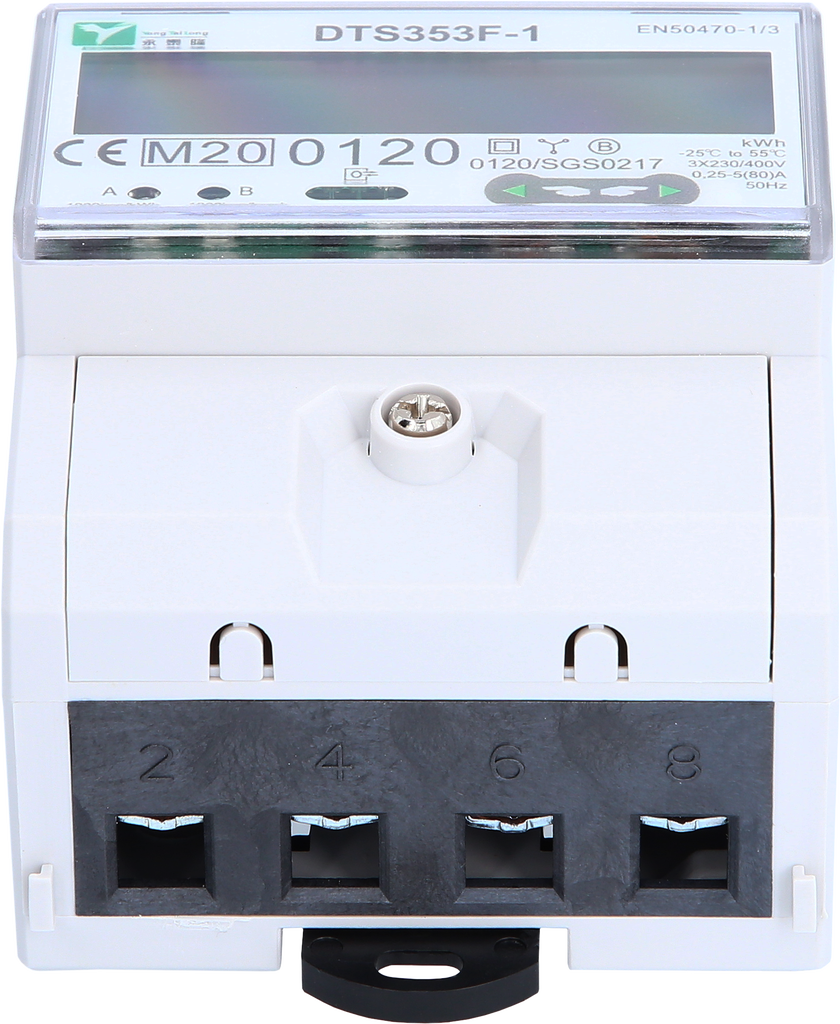

efuturo® electricity meter

for top-hat rail, MID-calibrated, 3-phase, 11 or 22 kW
  • MID-calibrated
  • LCD display

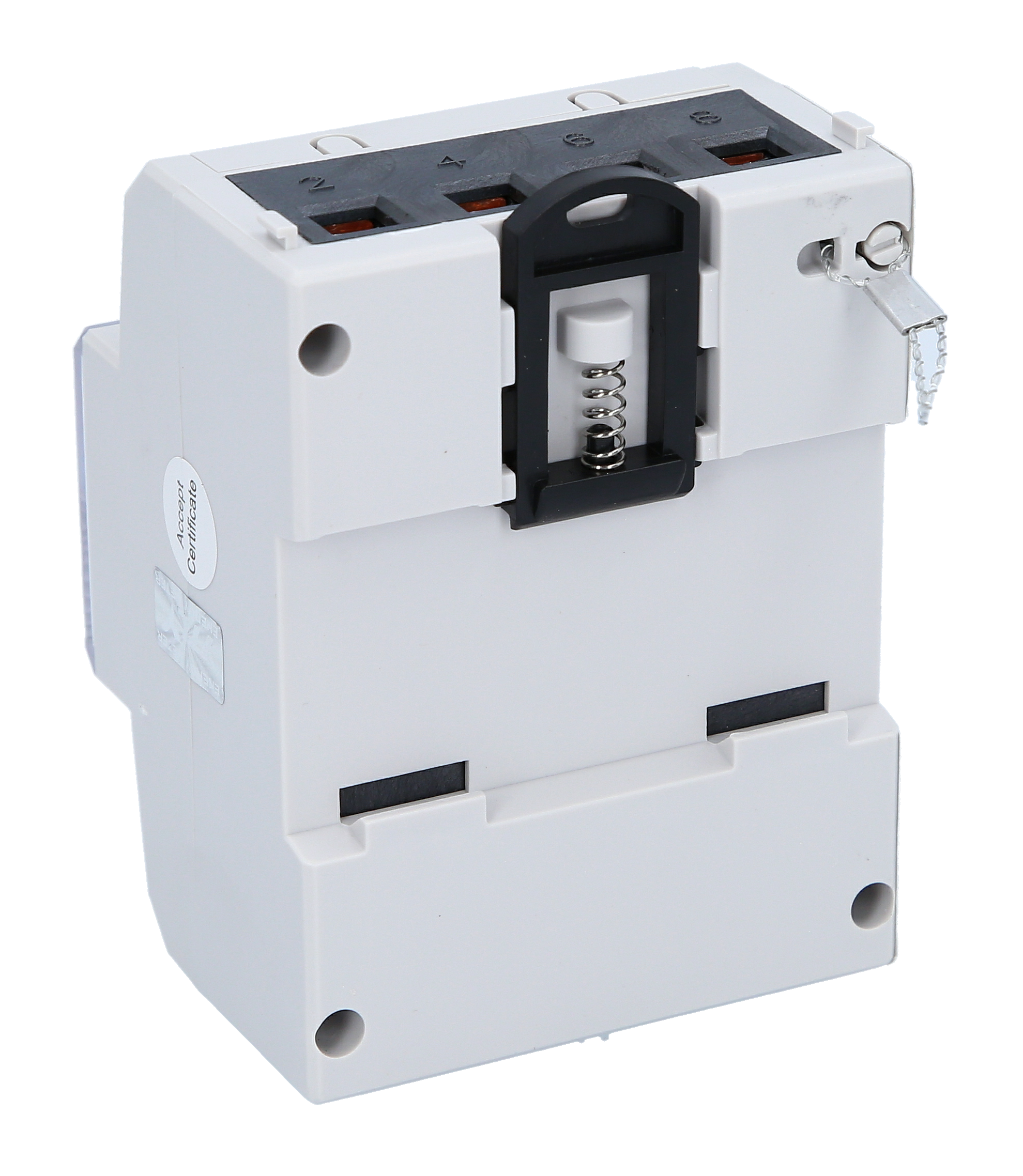

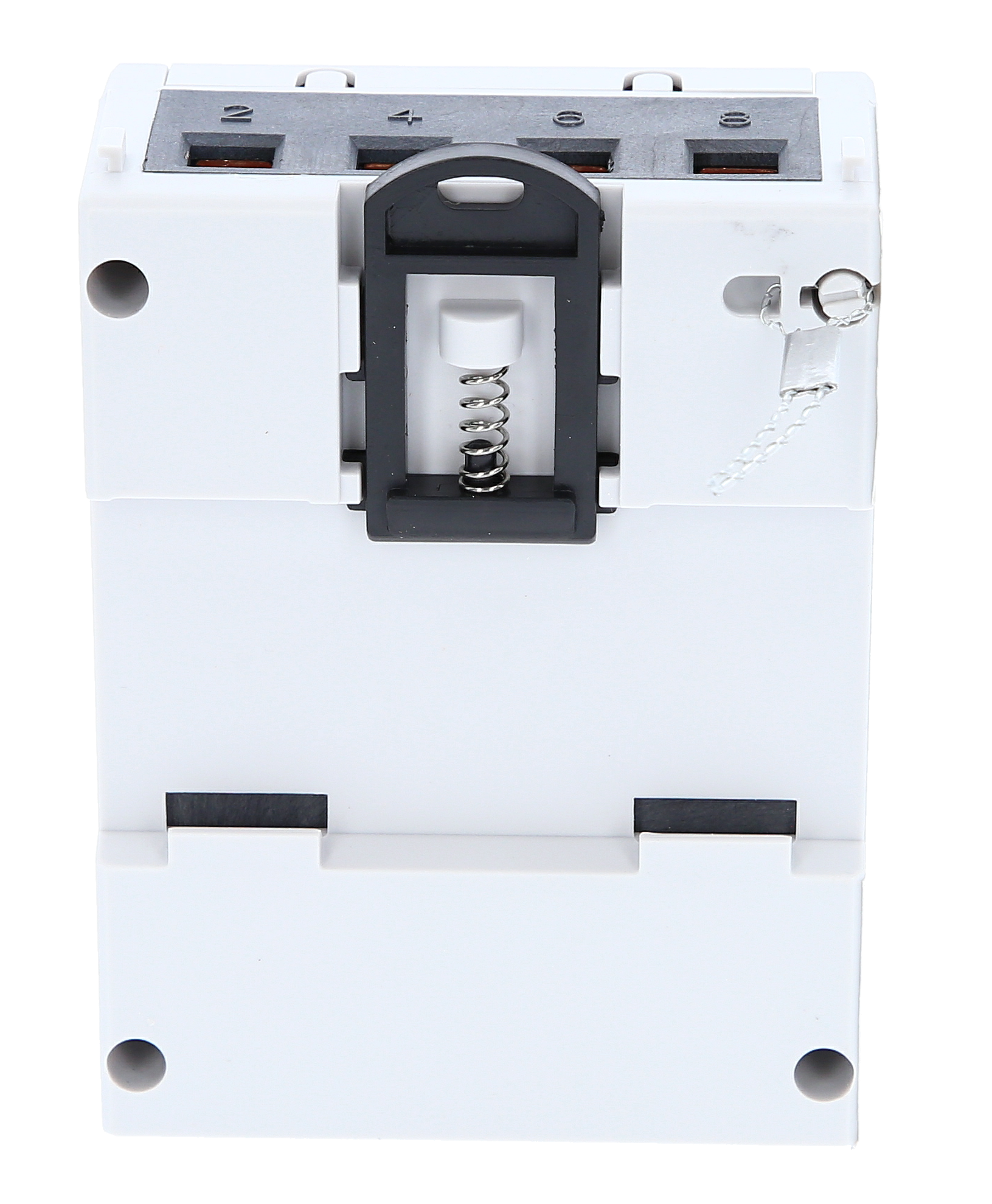

  • Installation on top-hat rail
  • Pulse output
  • For all efuturo wallboxes with 11 kW or 22 kW output
€184.50 *
excl. VAT plus shipping costs

Delivery time approx. 5 working days

Description

Due to the Wallbox's very small housing size, it is unfortunately not possible to integrate an electricity meter into our efuturo Wallboxes delivering 11 kW or 22 kW. We offer an electricity meter separately instead. This can be easily affixed by an electrician in the switch cabinet to a profile rail and connected in front of the Wallbox. With the installed electricity meter you can read the energy consumption. This allows you to monitor your energy consumption. Landlords can invoice the consumption of the charging current to their tenants via the MID calibrated electricity meter.

Common specification
Manufacturer number
117.7933
EAN
4042146865323
Operating temperature
-25°C to +55°C
Electrical specification
Accuracy
B
Frequency
50 Hz
Display mode
LCD
LED
1 blinking / pulsating
Pulse output
1000 imp/kWh
Calibration
MID
Electrical power supply
3x 230 V / 400 V
Electricity
0,25-5 (30) A, 0,25-5 (32) A, 0,25-5 (40) A, 0,25-5 (45) A, 0,25-5 (50) A, 0,25-5 (80) A
Pole type
3 phase
